Shutting Down or Restarting the ForneyLink HMI Touchscreen

This article outlines the process to shut down or restart the ForneyLink HMI Touchscreen.

Follow this procedure anytime the ForneyLink Touchscreen needs to be shut down or restarted.


Procedure:
  1. Locate the power switch at the bottom of the HMI on the left side.
  2. Push the switch momentarily to initiate a system shutdown.

TA-1270-23 HMI - Power switch

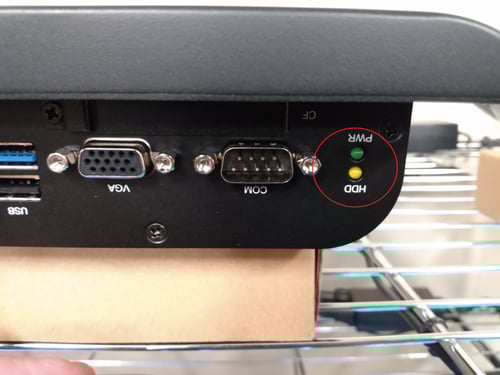

3.  Once the touchscreen has shutdown, the power LED will be extinguished.


TA-120-23 HMI Power LED

4. If the ForneyLink HMI Touchscreen needs to be restarted, please briefly press the power button a second time.



Note: If the touchscreen fails to start up or shutdown, the power switch is likely defective. You can find more information about replacing the switch here:   Technical Guide – HMI Touchscreen Power Switch Replacement


Need Help?
If you have any questions or encounter issues during this procedure, please contact Forney Product Support at 724-346-7400 or visit https://forneyonline.com/customer-service/.
