HOW DO I MANAGE CONCRETE MIXES IN FORNEYVAULT?

Concrete mix designs in ForneyVault allow you to create, manage, and track the various concrete mixes your lab uses for testing. Each mix design contains important information such as the mix ID, description, and related specifications. By maintaining an accurate list of active and inactive mixes, you ensure consistent data entry, clear reporting, and reliable traceability across all tests.  In addition to managing mix information, ForneyVault automatically connects your mix designs to every sample and test result that uses them. This data can be analyzed using the Mix Performance Report, which summarizes the performance of each mix across all samples and test ages, helping you monitor trends and identify issues over time.

Create Admixtures

  1. After logging into ForneyTools, from the main menu, select Resources from the Main navigation menu on the left, then select Concrete Mixes.



  2. From the Concrete Mixes page, select +  New Concrete Mix.



  3. Please input your preferred Concrete Mix information and remember to specify the corresponding Supplier.





    Mix Name Name of mix to be created Description Optional information of the Concrete Mix
    Active Allow Mix to be chosen when creating Samples  Supplier Entity supplying the concrete mix
    Slump Spec Slump specification  Slump Tol Slump Tolerance recorded as +/- Slump spec Variance
    Entrained Air Spec Entrained Air specification Entrained Air Tol Entrained Air tolerance recorded as +/- Entrained Air Spec Variance
    Max Water/Cement Ratio The max weight of the water used for a given weight of the cementitious materials. Design Strength Max strength of the concrete mix.
    Design Age Age concrete reaches max strength
  4. Select Save to finish.
  5. Your new Concrete Mix will now be selectable when creating or editing a Sample.



Managing Concrete Mix Designs

Note:

  • When marked inactive, the mix will no longer appear as an option when creating new samples. However, all historical data and samples that used that mix remain preserved in ForneyVault for reporting and traceability.

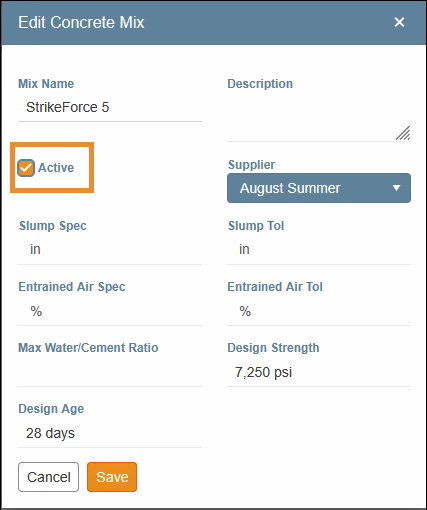

  1. From the Concrete Mixes page, select the Edit () icon next to the mix you want to update.

  2. In the mix details window, uncheck the "Active" box



  3. Make any other changes needed to the mix, such as Name, Slump, etc.

  4. Click Save to confirm your changes.
